Distribution transformers, compact substations, switchgear and diesel generator sets for EPC contractors, mines, utilities and rental fleets. One contract with our company, factory tests you can see, and shipment to your port.
Standard ratings below. Other ratings, voltages and 60 Hz versions on request.
630–2,500 kVA
11 / 0.415 kV and 33 / 0.415 kV, IEC 60076, Dyn11, ONAN, copper or aluminium windings.
1,600–2,500 kVA
Cast-resin, 11 kV class, with IP enclosure for indoor substations.

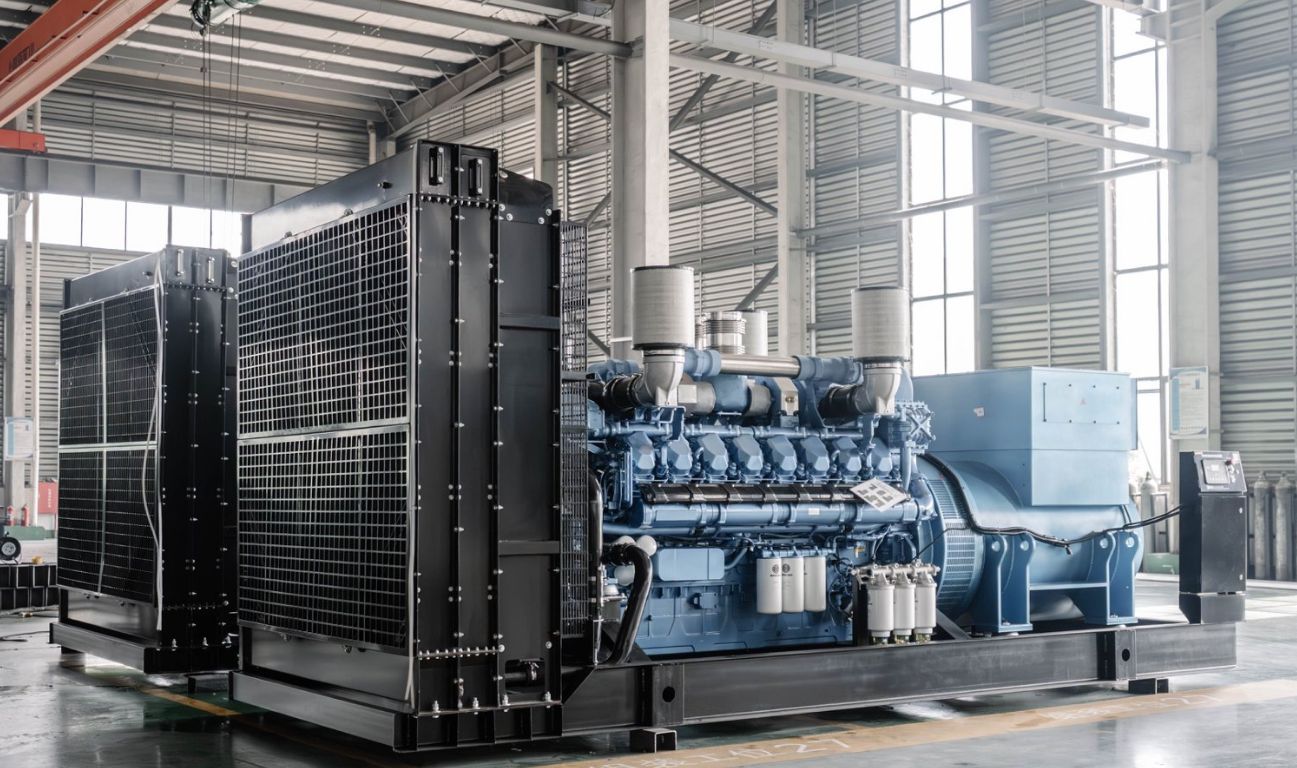

100–1,500 kW
Weichai, Yuchai, Shangchai or Cummins engines. Open frame, silent canopy or 40 ft container.
630–1,600 kVA
MV switchgear, transformer and LV board in one enclosure, built to your single-line diagram.
12–36 kV
Gas-insulated RMUs and metal-clad panels for distribution networks and plant substations.
400 V
Main distribution boards, automatic transfer switches and generator paralleling panels.
Use our quote form, WhatsApp or email. Rating, voltage, quantity, destination port.
We typically reply within 24 hours with price, technical data, applicable test reports and lead time.
Transformers 3–5 weeks; generator sets up to 1,000 kW 4–6 weeks, 1,500 kW 8–10 weeks after deposit. Tests shown by live video on larger orders, by report and video on smaller ones, or witnessed by your inspector.

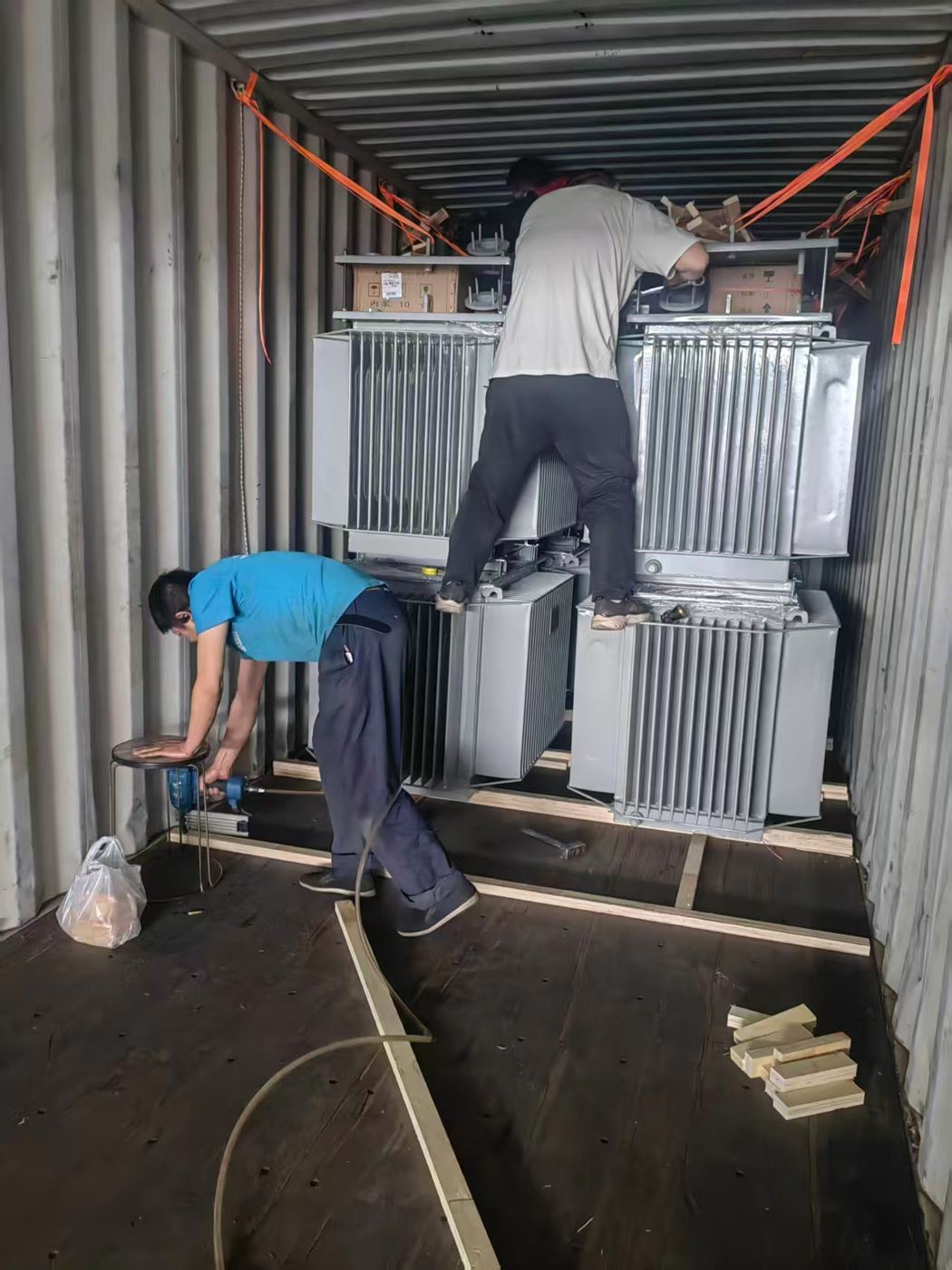

You review the test report, photos and video, pay the balance, and we ship to your port.
Every order has one sales contract with our company, stating the specification, test scope, acceptance criteria, lead time, payment schedule and a 12-month warranty. If something is wrong, you deal with us, and we deal with the factory.
We are an export company, not a factory. Transformers, switchgear and generator sets are built by different specialist manufacturers. We bring them into one order and take responsibility for it.
Transformer, switchgear, panels and generator sets on one sales contract, one invoice and one shipment to your port.
We match each item to a manufacturer whose type test reports cover that design, and tell you which reports apply before you order.
You see the test report, photos and video of your own unit and pay the balance only after that. Your own inspector is welcome.
The 12-month warranty is in our contract. If something goes wrong you contact us, and we deal with the factory.

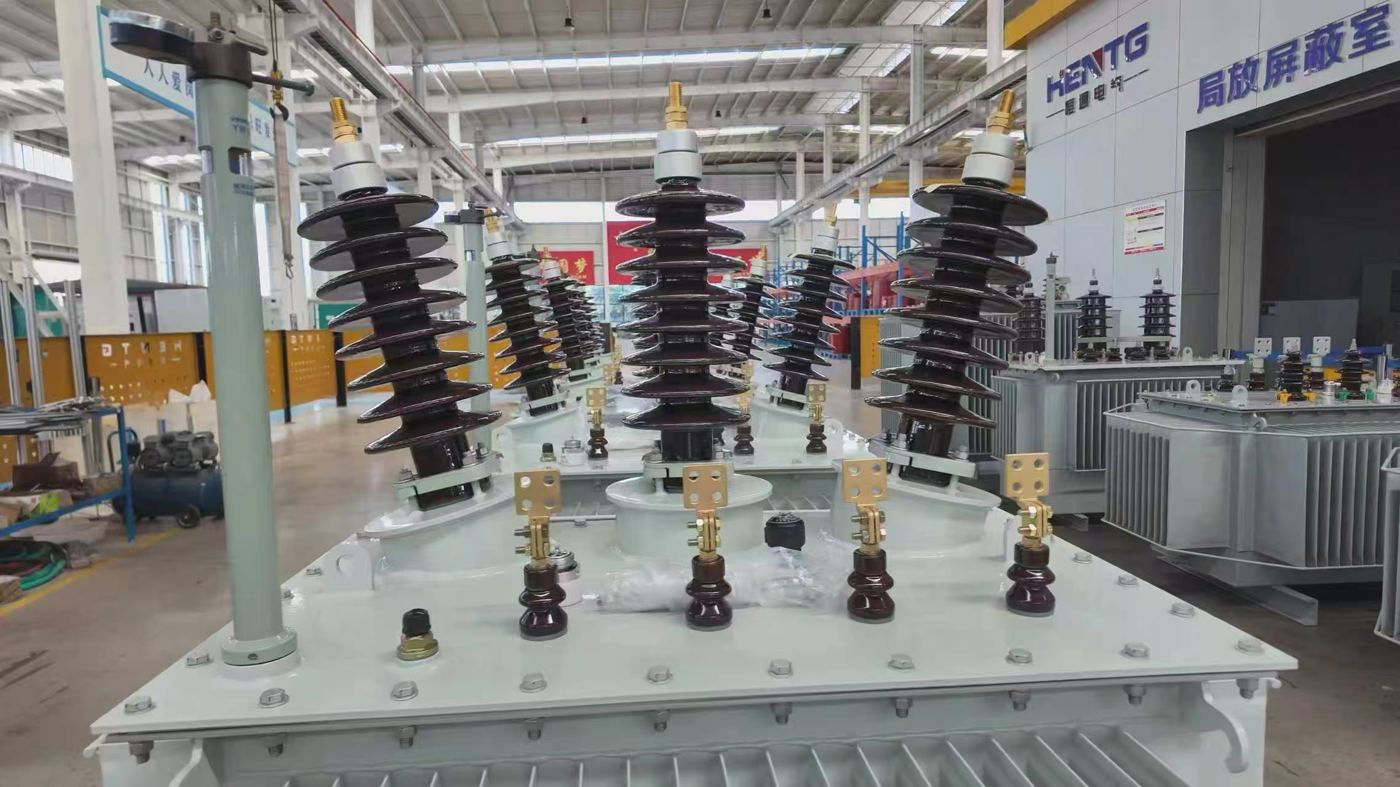

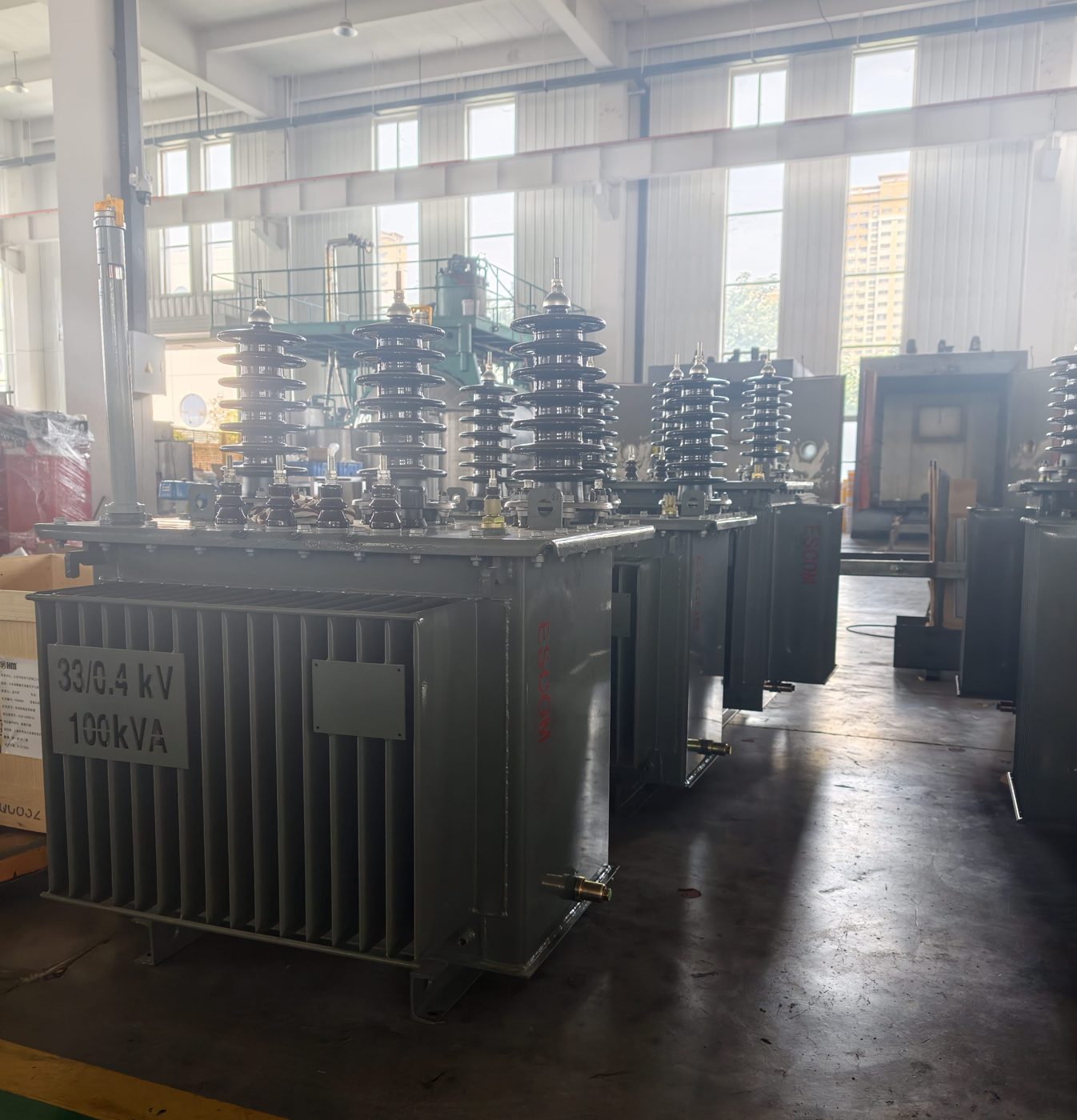

Built to IEC 60076, 50 Hz, Dyn11, ONAN, designed for 50 °C ambient. Copper or aluminium windings. Losses and impedance are stated in every quote.
| Rating | No-load loss | Load loss | Impedance |
|---|---|---|---|
| 630 kVA | 810 W | 6,200 W | 4.0 % |
| 1,000 kVA | 1,150 W | 10,300 W | 4.0 % |
| 1,600 kVA | 1,640 W | 14,500 W | 4.0 % |
| 2,500 kVA | 2,290 W | 21,200 W | 4.0 % |
| Rating | No-load loss | Load loss | Impedance |
|---|---|---|---|
| 630 kVA | 830 W | 7,860 W | 6.5 % |
| 1,000 kVA | 1,150 W | 11,500 W | 6.5 % |
| 1,600 kVA | 1,690 W | 16,600 W | 6.5 % |
| 2,500 kVA | 2,360 W | 23,200 W | 6.5 % |
Typical design values. Loss tolerance +15 % per IEC 60076-1. Final guaranteed values, tapping range, insulation levels, weights and dimensions are stated in the quote for your exact specification.
Aluminium windings cost noticeably less for the same rating and losses class. We quote both on request, so you can choose.
See what you receive before you order.

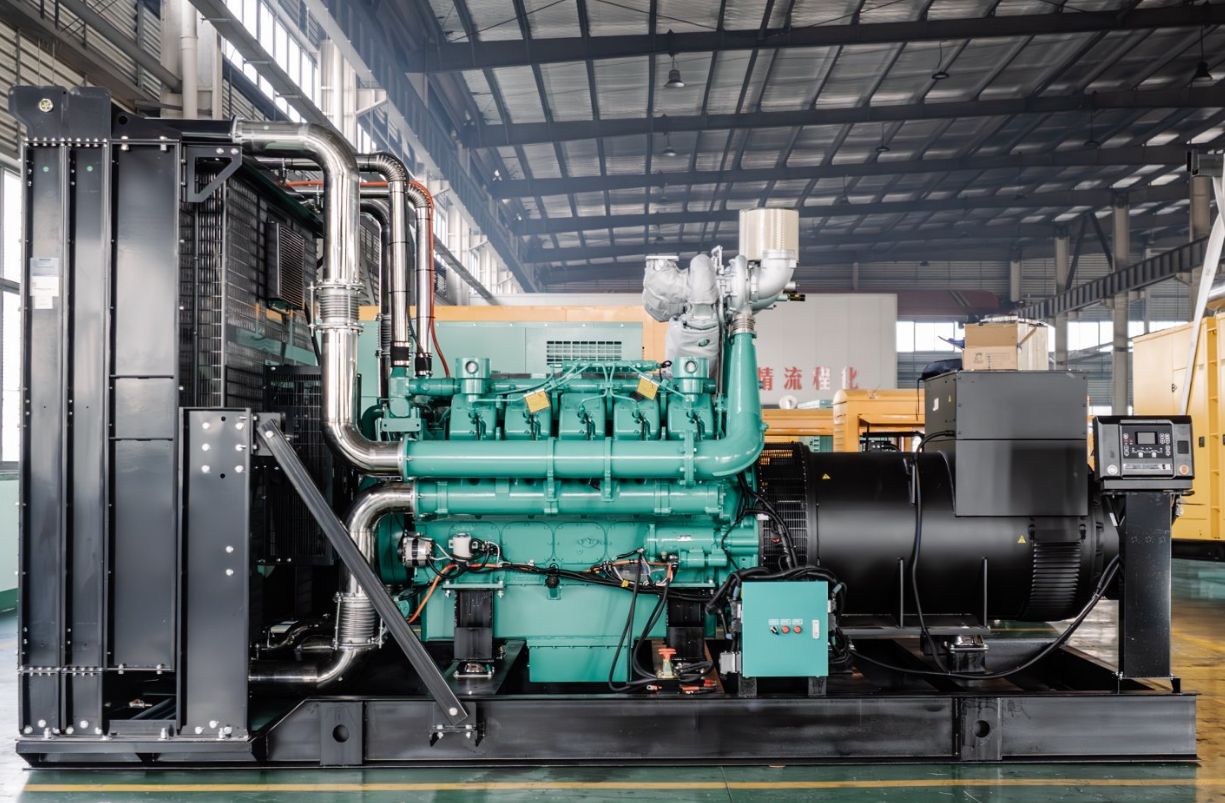

Prime and standby power for rental fleets, mines, construction and industrial sites. Engine, alternator and controller makes are stated in every quote.
| Item | Standard offer |
|---|---|
| Ratings | 50 kVA to 1,500 kW prime; published prices from US$ 4,950 (50 kVA) and US$ 71,210 (1,000 kW); transformers from US$ 6,530 (630 kVA, copper, 11 kV) |
| Engines | Weichai · Yuchai · Shangchai · Perkins · Cummins |

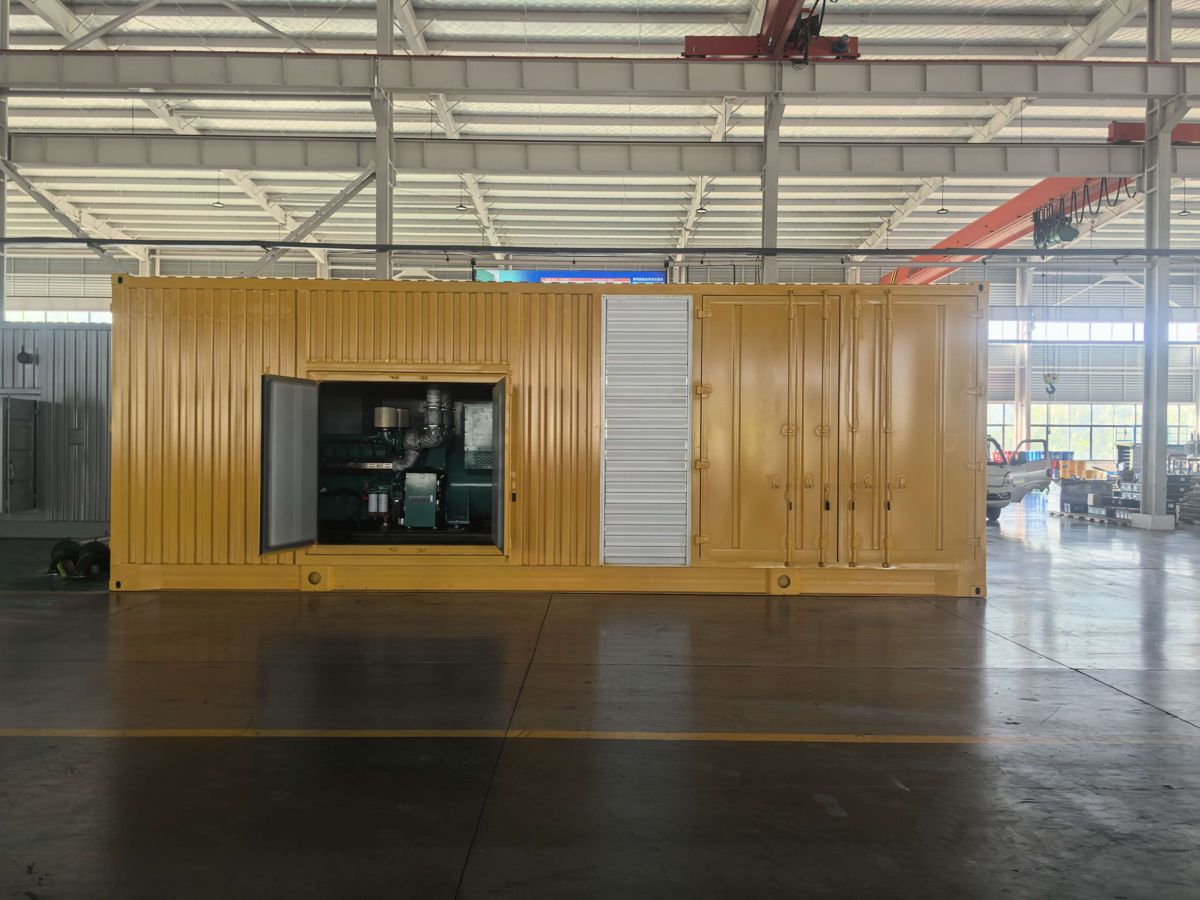

| Build | Open frame, silent canopy, or 40 ft sound-attenuated container with fuel tank |
| Standard | Brushless alternator, digital controller, main breaker, radiator, batteries, silencer |
| Options | ATS, paralleling panels, remote monitoring, 60 Hz and other voltages |
| Production | 4–6 weeks after deposit up to 1,000 kW; 8–10 weeks for 1,500 kW |

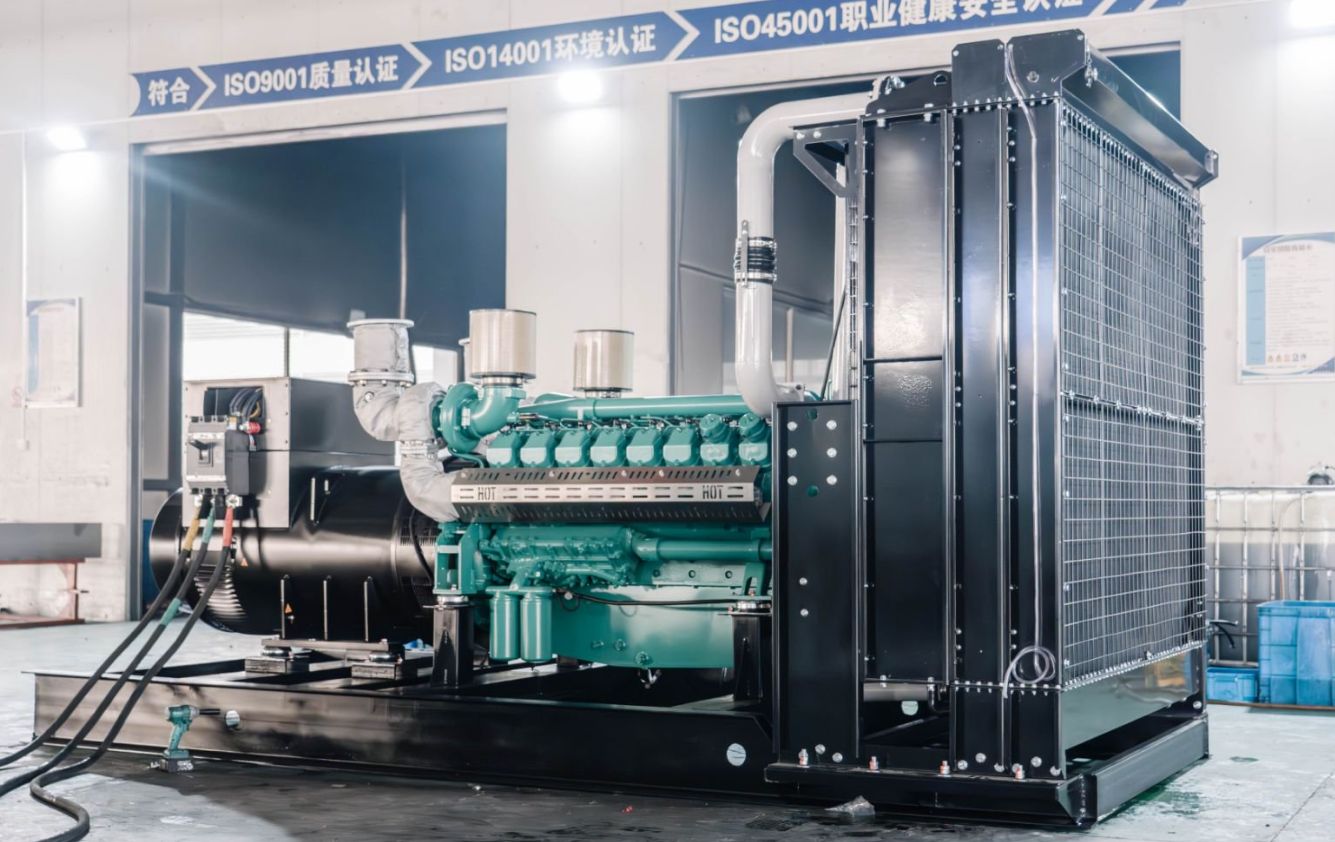

Before you pay the balance you see your own set on the load bank: by live video for orders of US$ 150,000 and above, and by test report, photos and test video for smaller orders. Third-party inspection welcome.
Factory load-test report, engine and alternator certificates, English manuals and spare-parts list.
Engines from makers with service networks in Africa, the Middle East and Asia. Spare-parts kits can ship with the set.
Buy the transformer and what connects to it from one supplier, under one contract and one shipment.
MV switchgear, transformer and LV board in one enclosure, for solar plants, mines and industrial sites. Quoted from your single-line diagram.
Gas-insulated RMUs and metal-clad switchgear. We state which type test reports apply to the exact design before you order.
Main distribution boards, capacitor banks, automatic transfer switches and generator paralleling panels.
Enter your total connected load. We add a margin for growth and suggest the next standard transformer and generator rating. A rough guide only; we check it against your load list when we quote.
Every quote comes with the full test reports that apply to the equipment offered. You see the complete documents before you decide.
Typically 30 % by bank transfer (T/T) to our company account when the contract is signed. Production starts on receipt.
The remaining 70 % is paid after you review the test report, photos and video, and before shipment. Your own inspector (SGS, BV, Intertek) is welcome.
Our account is stated only on the contract and proforma invoice. If you ever receive a change notice, confirm it with us on a WhatsApp video call before paying.
No. We are a power equipment export company. We work with specialist manufacturers for transformers, switchgear and generator sets. Your contract and invoice are with our company; we select the manufacturer, check the specification, organise testing and inspection, and coordinate export. If anything goes wrong, you deal with us. Why buy through us
We typically reply within 24 hours. Standard ratings are often quoted the same day. Packages built to a single-line diagram can take longer, and we tell you when to expect them.
One unit. Trial orders are welcome.
12 months, written into the sales contract. Send the order number and photos and we handle the claim with the manufacturer.
FOB Shanghai, Qingdao or Ningbo as standard. We can quote CFR or CIF to your port on request.
Yes. Routine tests are shown to you by live video on orders of US$ 150,000 and above, and by test report, photos and test video on smaller orders. Your own third-party inspector is always welcome. You pay the balance only after you have reviewed the results.
Yes. Tell us the voltage, frequency and standard you need and we confirm it in the quote.
Tell us the rating, voltage, quantity, destination and deadline. We typically reply within 24 hours with price, technical data and lead time. No newsletters, no follow-up spam.
